Bolt Action Mount

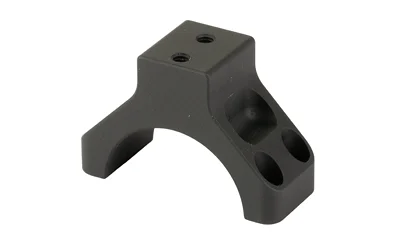

The Trijicon Bolt Action Mount features a 30mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and a flush mounting bolt configuration for a sleek side profile.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 42mm on any weapon platform with a full Picatinny rail.
– Matte black anodized finish
– Made in the USA
Distance From Top of Mounting Rail to Optical Axis:
1.06″
Fits Objective lens up to 42mm
Torque Spec (Rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.
Torque Spec (Ring Caps): 14-16 in. / lbs.
NOTE: Fits Objective lens up to 42mm
Description:
- Tube Size 30mm
- Housing Material 6061-T6 Aluminum
- Finish Matte Black
- Length 4.74 in (120.4mm)
- Width 1.95 in (49.53mm)
- Height Above Rail (in/mm) 1.06″ in. (26.92mm)
- Feature Slimline Mounts
