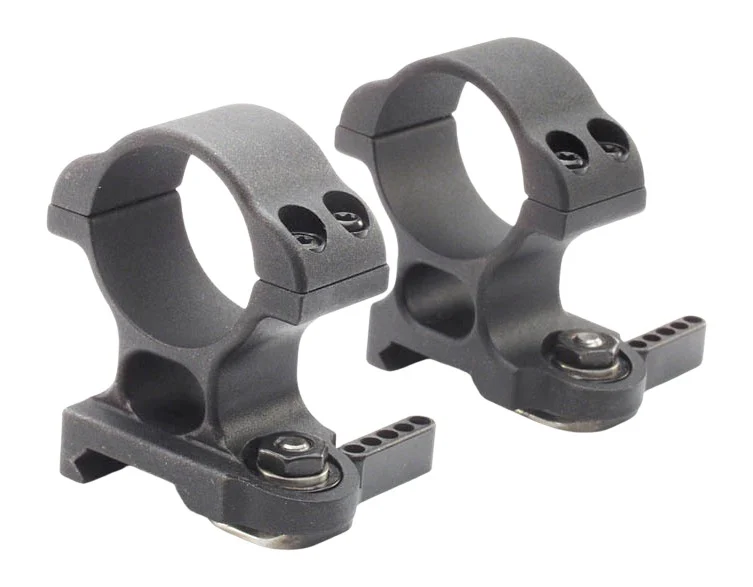

Scope Rings w/ Q-LOC
Trijicon Ring Mounts w/ Q-LOC™ Technology feature a 34mm tube, and are designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The Ring mounts boast a low profile design with superior return to zero performance and are compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable power optics, these rings are perfect for mounting Trijicon variable power optics with an objective lens up to 44mm on any weapon platform with a full Picatinny rail.
– Matte black anodized finish
– Made in the USA
Distance From Top of Mounting Rail to Optical Axis:
1.1″
Fits Objective lens up to 44mm
Torque Spec (Rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.
Torque Spec (Ring Caps): 14-16 in. / lbs.
NOTE: Fits Objective lens up to 44mm
Description:
- Quick-release, return to zero
- Automatic retention keeps optic secure
- Snag-resistant knob design
- Precision-cut dimensions
- Proven durability
Specifications:
- Tube Size 34mm
- Housing Material 6061-T6 Aluminum
- Finish Matte Black
- Length 1.25 in (31.75mm)
- Width 2.8 in (71.12mm)
- Height Above Rail (in/mm) 1″ in. (25.4mm)
- Feature Trijicon Q-LOC™ Technology
