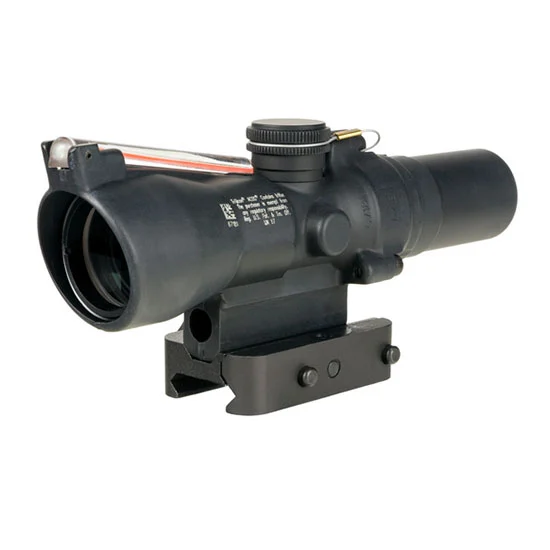

Compact ACOG Scope
If you’ve heard of the Trijicon ACOG® (Advanced Combat Optical Gunsight), you likely know about the legendary performance this platform offers. The ACOG 1.5×24 model, offers a battery-free dual illuminated reticle pattern that works in any lighting conditions, with the added freedom of eye movement afforded by a larger exit pupil and longer eye relief.
The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Description:
- Always on, always ready
- Take control
- Rugged, reliable housing design
- “Both eyes open” design
- Outstanding clarity
- Exact target distances and holds
- Combat proven
- Shock resistant
- Waterproof
Specifications:
- Length x Width x Height 5.8 in x 2.1 in x 2.6 in (147.32mm x 53.34mm x 66.04mm)
- Weight 8.4 oz. (238.14g)
- Magnification 1.5x
- Objective Size 24mm
- Reticle Pattern Triangle
- Day Reticle Color Red
- Night Reticle Color Red
- Bindon Aiming Concept™ (BAC) Yes
- Illumination Source Fiber Optics & Tritium
- Power Source Fiber Optics & Tritium
- Adjustment 2 clicks per in. @100 yards
- Exit Pupil 0.63 in. (16mm)
- Field of View (degrees) 4.9°
- Field of View (feet) 25.6 ft. @ 100 yds. (8.53m @ 100m)
- Mount Trijicon Q-LOC™ Technology Mount
- Housing Material Forged Aluminum
- Finish Matte Black
